Gaseous nitrogen has been used to expel oxygen and improve product shelf life. Liquid nitrogen can serve the identical goal whereas decreasing nitrogen consumption by 80% over conventional gasoline tunnels. Dealing with liquid nitrogen on a manufacturing line poses challenges, whether or not pressurizing or inerting meals or beverage containers.
Gear Overview
Liquid nitrogen has a boiling temperature of -320°F (-196°C) and can boil away quickly when uncovered to room temperatures. Subsequently, insulated gear have to be used to make sure effectivity and security. This gear consists of an injection gadget able to metering small doses of liquid nitrogen into meals or beverage containers, storage vessels or tanks, and piping to move the liquid nitrogen to the injection location.
Storage vessels typically are available in two types: giant bulk tanks and small moveable tanks known as dewars.
Each designs function a double-wall development with a vacuum area separating the inside and outer partitions. This vacuum “jacket” permits the tank’s outdoors floor to stay at ambient temperatures whereas sustaining cryogenic temperatures inside. The nitrogen might be held in liquid type for fairly some time, however even with this vacuum barrier, the insulation isn’t excellent, and tank losses can vary 0.5% – 2% per day. Giant bulk tanks are sometimes put in outdoors and require longer piping programs to switch the liquid to the use level. Dewar tanks are moveable and might be located nearer to the use level, requiring a shorter hose size.
Insulated piping needs to be used for both sort of storage vessel to restrict losses and enhance effectivity. There are a number of forms of insulated piping, however they’ll typically be categorized as vacuum-jacketed and non-vacuum-jacketed.
Vacuum-jacketed piping is just like the insulation present in bulk tanks or dewars. An inside pipe is surrounded by a vacuum annulus that gives insulation between the cryogenic temperatures within the pipe and the ambient temperature outdoors it.
This vacuum area considerably reduces warmth losses, enhancing the effectivity of the pipe. Vacuum jacketed piping is extra environment friendly than non-jacketed piping and presents utterly frost-free operation. The vacuum jacket on such a pipe is generated by attaching the pipe to a vacuum pump. In a dynamic vacuum system, a vacuum pump constantly pumps, and the vacuum high quality persistently improves. With the necessity for a devoted vacuum pump working on a regular basis, the working prices are barely increased with this type. The vacuum on a sealed-vacuum system is often evacuated on the manufacturing unit after which sealed off. Over time, this vacuum will progressively degrade, leading to elevated warmth losses and decreased efficiency.
Both sort of vacuum jacketed piping can are available in inflexible or versatile sections. Inflexible piping have to be precisely dimensioned to make sure a correct match within the area. Versatile piping is fabricated in sections, making it simpler to put in and extra adaptable for routing round obstructions. Vacuum Barrier Company customized manufactures sealed and dynamic- vacuum variations in varied supplies and sizes. Non-vacuum jacketed strains are sometimes insulated with foam and will not be as environment friendly, with warmth losses as excessive as 20 instances that of vacuum jacketed piping. As the froth degrades over time, it loses its insulating qualities. These piping programs even have bigger outer dimensions, making routing by way of tight areas troublesome.
Nitrogen dosing gear is the primary element of a liquid nitrogen system. It’s usually what manufacturing services are most excited about, because it immediately impacts their capability to satisfy pressurization or inerting objectives. Sometimes, these are known as dosers and should function frost-free and effectively throughout dosing or idle instances.
The reliability of a doser on a manufacturing line is vital as losses are calculated in minutes of downtime. As with every cryogenic gadget, inside publicity to moisture should at all times be restricted because it’s a doser’s largest enemy. Care have to be taken throughout nozzle adjustments and upkeep to forestall contamination by moist air. In particular industries, there could also be a requirement that liquid nitrogen be delivered aseptically, and subsequently, the unit have to be able to being sterilized.
Manufacturing Targets

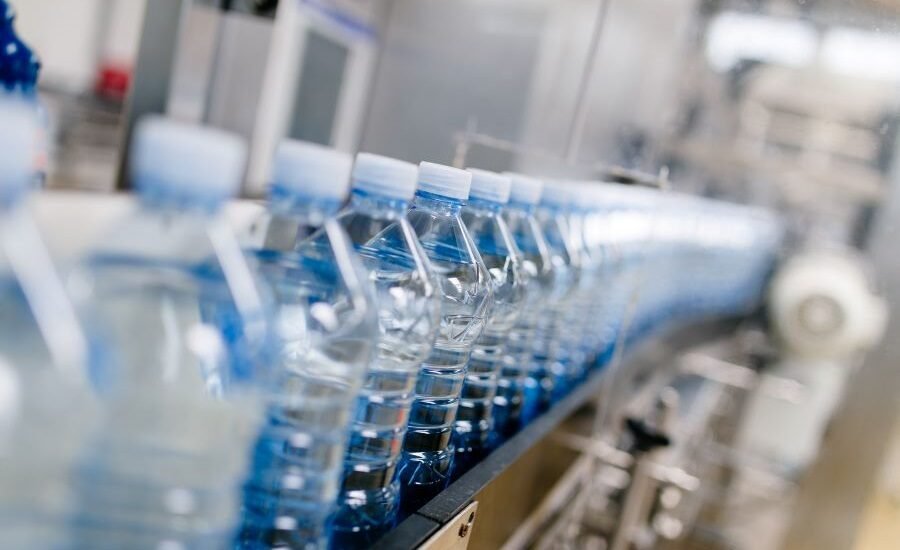

Except for working frost-free, a doser should additionally meet the objectives of the manufacturing facility. Any bottling or canning operation will search for constant pressurization or inerting of their containers. This requires the doser to persistently output an correct dose of liquid nitrogen, whether or not dosing discretely or regular streaming. Too small of a dose can result in unstable containers and the potential for collapse. For inerting processes, this might result in meals spoilage. If dosed with an excessive amount of nitrogen, there’s a danger of containers bulging or bursting, which may trigger jamming and downtime.
The problem for the dosing gear is to reliably and precisely management the liquid nitrogen dose for every container as much as speeds of 2000 bottles per minute. To satisfy the manufacturing objectives of pressurization, a doser depends on constant fill heights from the filler. Even a small change in fill peak can result in under- or over-pressurization.
The doser can regulate to adjustments within the filler’s line pace. As the road ramps up or down, timing is adjusted robotically to make sure every dose enters the container. Likewise, dose compensation adjusts the quantity of LN2 disbursed as the road pace adjustments. For instance, as a line slows down, there may be extra time between filling and capping, which implies extra time for the nitrogen to boil off. Subsequently, a bigger dose is disbursed to take care of constant pressures.
Different components on the manufacturing line should even be thought of to make sure correct pressurization. Journey time from the doser to the seamer or capper needs to be minimized to forestall extra boiling or lack of nitrogen. Shaking or bouncing containers on the conveyors can pressure nitrogen and product out of the bundle earlier than closure. Dependable sealing closures are additionally wanted to take care of the stress inside the container after dosing.
VBC presents a variety of dosers to accommodate quite a lot of line speeds and budgets.
Security
Addressing employee and machine security when coping with liquid nitrogen is important. When boiling from liquid to gasoline, nitrogen expands roughly 700 instances. Security reduction valves are put in on tanks, piping, and dosers to forestall over-pressurization and potential gear ruptures. The place there are shut-off valves in a system, there may be potential for nitrogen to be trapped. A security reduction valve have to be positioned between any two such valves. On bulk tank-fed programs, the lowest-rated reduction gadget is often positioned outside. If a security reduction valve does relieve, it’s safer if it occurs outside reasonably than inside the place staff are current.
Prices
Value is one other key consideration of manufacturing services, and it’s vital to have a look at the complete image when measuring the prices of an LN2 system. The upfront buy value, set up, and working prices have to be thought of collectively. When evaluating tank choices, giant bulk tanks value extra initially, however nitrogen is less expensive in bulk. The necessity to regularly change out dewars throughout a manufacturing run can even add hidden prices.
There are extra choices for value discount in relation to piping. Cheap foam-insulated piping can scale back the preliminary value, however the working prices related to utilizing extra nitrogen can add up over the lifetime of a system. Vacuum jacketed piping is costlier up entrance, nevertheless it’s extra environment friendly and can scale back nitrogen consumption and working prices. As talked about earlier, dependable operation is a key element for liquid nitrogen dosing programs, and downtime brought on by a reasonable, foam-insulated dosing system can offset any perceived good points from a low preliminary buy value.
A manufacturing facility contemplating liquid nitrogen dosing should take into account prices, each upfront and working, the reliability of the system from tank by way of piping to doser, and the security of its staff. To reach this and accumulate the right data, please seek the advice of Vacuum Barrier Company.
